エアツール

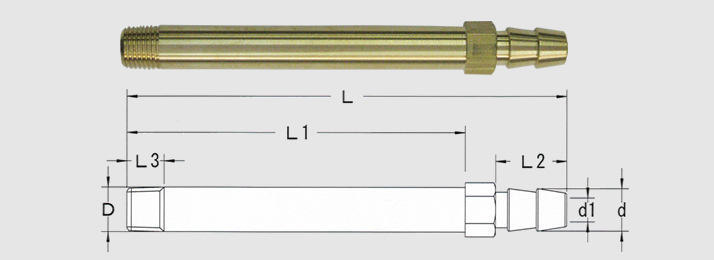

ロング水口M単位 mm
| 規 格 |
ホース口d
|
ネジD |
六角対辺 |
L |
L1 |
L2 |
L3 |
d1 |
| LM1/8×50 |
12.5 |
R1/8 |
14 |
80 |
50 |
21 |
9 |
6 |
| LM1/8×70 |
12.5 |
R1/8 |
14 |
100 |
70 |
21 |
9 |
6 |
| LM1/8×100 |
12.5 |
R1/8 |
14 |
130 |
100 |
21 |
9 |
6 |
| LM1/8×130 |
12.5 |
R1/8 |
14 |
160 |
130 |
21 |
9 |
6 |
| LM1/8×150 |
12.5 |
R1/8 |
14 |
180 |
150 |
21 |
9 |
6 |
| LM1/8×170 |
12.5 |
R1/8 |
14 |
200 |
170 |
21 |
9 |
6 |
| LM1/8×200 |
12.5 |
R1/8 |
14 |
230 |
200 |
21 |
9 |
6 |
| LM1/4×50 |
12.5 |
R1/4 |
17 |
80 |
50 |
21 |
11 |
7 |
| LM1/4×70 |
12.5 |
R1/4 |
17 |
100 |
70 |
21 |
11 |
7 |
| LM1/4×100 |
12.5 |
R1/4 |
17 |
130 |
100 |
21 |
11 |
7 |
| LM1/4×130 |
12.5 |
R1/4 |
17 |
160 |
130 |
21 |
11 |
7 |
| LM1/4×150 |
12.5 |
R1/4 |
17 |
180 |
150 |
21 |
11 |
7 |
| LM1/4×170 |
12.5 |
R1/4 |
17 |
200 |
170 |
21 |
11 |
7 |
| LM1/4×200 |
12.5 |
R1/4 |
17 |
230 |
200 |
21 |
11 |
7 |
